TIG Torch -WP18
TIG-18/WP-18Technical Parameter
Voltage grade(V) L
Inert gas argon
Load Rate100% 320/270
Diameter of tungsten rod 0.5-4.0
Cooling mode water
The Max Temperature of Cooling Water 60°C
Min Water Velocity L/min 1.5
Max Air Pressure bar4
Min Air Pressure bar2
Gas Feed Rate L/min7-20

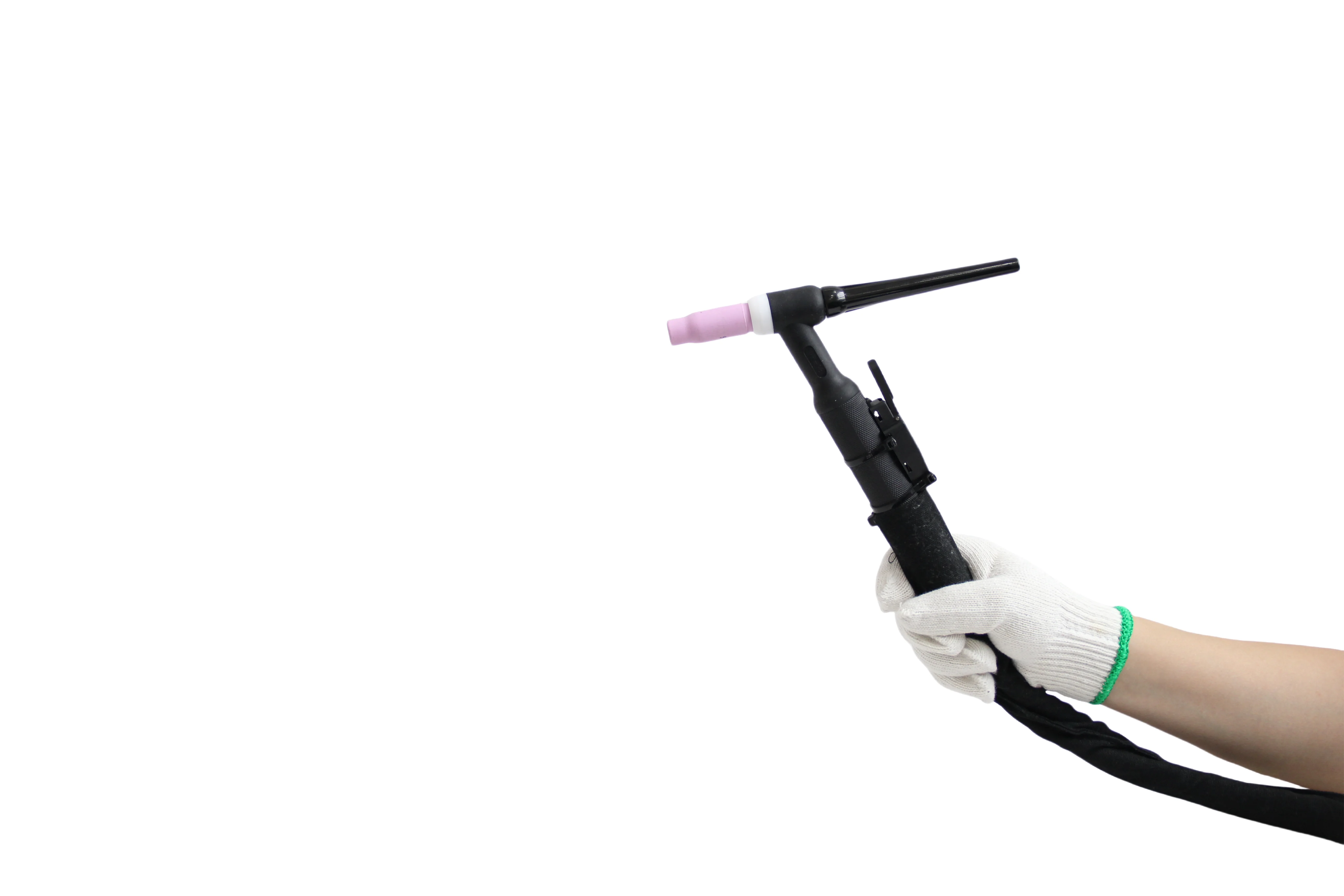

Name:Water Cooling Argon Arc Welding Gun
Item No.:TIG-18,WP-18,
Main features
Valve can be installed,flexible gun and flexible gun with valve
Two kinds of switches can be mounted single control and dual-control switch
Rubber flexible gun with a high insulation
The converted connector can serve with all forms of welding machine
DESCRIPTION:
Product Overview
PRODUCT SPECIFICATIONS
No | Item | Data |
1 | Brand | Thxon |
2 | Model | WP18 |
3 | Cooling method | Water Cooled |
4 | Rating | 600A |
5 | Tungsten Rod | 0.5~4.0mm |
6 | Duty Cycle | 60%-100% |
9 | Cable Length | 5m,15m, 20m |
10 | Warranty | 12 months |
PRODUCT CONFIGURATION
MIG Welding Accessories
Wear Parts
